Ideal TP12KSC-DX 12,000lb Capacity Two Post Lift (ETL/ALI Certified)

Write a Review

SKU:: TP12KSC-DX
UPC:: TP12KSC-DX
Availability:: FACTORY SHIPPED
Shipping:: Free Shipping

On Sale

$6,999.00

$6,099.00

$6,799.00

— You save $900.00

Current Stock:

Quantity:

Description
Warranty
Reviews (0)

Description

Ideal TP12KSC-DX 12,000lb Capacity Two Post Lift (ETL/ALI Certified)

Factory shipped from a warehouse near you.
This item ships by truck and you must have a way to unload the truck!
This item will not fit on a Liftgate!

This item ships by truck and you must have a way to unload this off the truck! This item will not fit on a Liftgate!

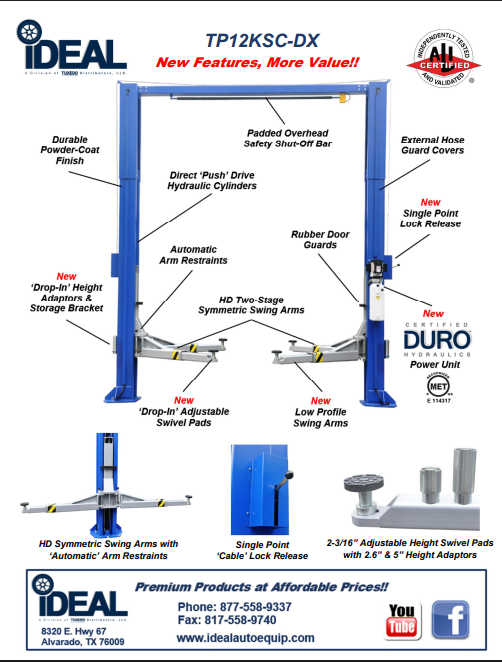

TWO POST CLEAR FLOOR

iDEAL - TP12KSC-DX

iDEAL, Two Post Clear Floor

ALI Certified
12,000 lbs capacity
Symmetric Arms
Rubber Door Guards
Direct Drive push Cylinders
Single Point Lock Release
Heavy Duty Arm Restraint System
Spin Up Lift Pads 5” min. Pad Height
Stackable Adapters Included
External hose guards
Duro Certifed Power Unit – MET, UL, CSA

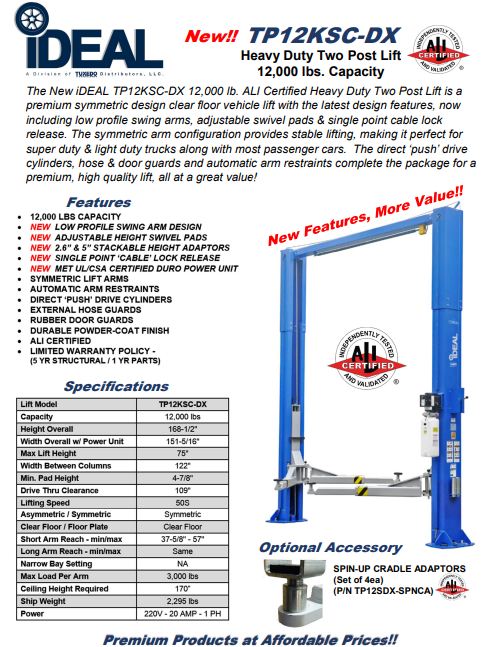

Specifications

Lift Model	TP12KSC-DX
Capacity	12,000 lbs.
Height Overall	168-1/2″
Width Overall w/ Power Unit	151-5/16″
Max Lift Height	75″
Width Between Columns	122″
Min. Pad Height	4-7/8″
Drive Thru Clearance	109″
Lifting Speed	50S
Asymmetric / Symmetric	Symmetric
Clear Floor / Floor Plate	Clear Floor
Short Arm Reach – min/max	37-5/8″ – 57″
Long Arm Reach – min/max	Same
Narrow Bay Setting	NA
Max Load Per Arm	3,000 lbs
Ship Weight	2,295 lbs
Power	220V – 20 AMP – 1 PH

View AllClose

Warranty Information

1 year, parts only warranty. iDeal belongs to the very best at offering the warranty / parts support that you need. iDDeal stocks over half a million dollars worth of replacement parts in their warehouse in TX. so we know that taking care of warranty is key to keeping our customers happy.
