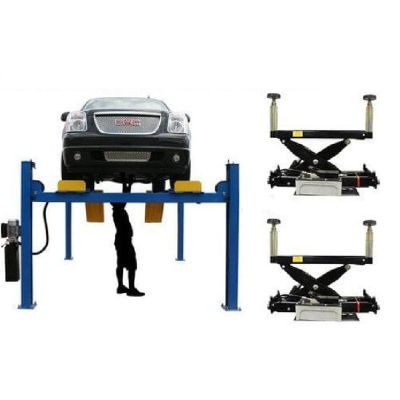

Combo Atlas® 414A 14,000 Lbs. Commercial Grade 4 Post Alignment Lift / 2 Bridge Jacks

Atlas® RJ-8000 Air/Hydraulic Center Rolling Jack 8,000 Lbs. Capacity
with Truck Adapters

Features Information

Automatic Shut Off Switch
Air Operated Lock Release
414A Installation
5 Year Structural & 2 Year Hydraulic Warranty
Accommodates A Wide Variety Of Wheelbases
Air Line Kit Included In Combo Package
Built-In Slip Plates
CE Tested And Approved
Electrical Requirements
Includes Turntables
Lock Ladder Column Design
Optional Front End Extension Kit

14,000 lb. Capacity
Alignment Slip Plates and Turntables
Turntable Color May Vary
Automatic Shut-Off Switch
Lock Ladder Column Design
Diamond Plate Runway Surface
Acommodates A Wide Variety Of Wheelbases
Atlas® Powder Coat Finish
Air Operated Single Point Lock Release
Mounting Hardware Included
5 Year Structural Warranty, 2 Year Hydraulic Cylinder Warranty, and 1 Year Power Unit Warranty
Shipping Weight: 3,500 lbs.

The Atlas® 414A 14,000 pound capacity four post lifts are designed and built to commercial grade standards and will provide many years of service. Our Atlas® alignment lifts offer many exclusive features not found on many other competitor's lifts. Each Atlas® 414A alignment lift includes a set of front turntables. The turntables can be set in different positions on the runway to accommodate a wide variety of wheelbases. There is also a FREE air line kit($300 value) included when you purchase the “combo package” (2-rolling jacks). The slip plates are built into the runways and are level with the front turntables. There are included metal cover plates (that cover the cut-outs for the turntables) so that the vehicle is not sitting on the turntable if the lift is not being used for alignment.

Drive- through off-ramps are available as an option.

The Atlas® 414A (14,000 LB. capacity alignment lift) incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas® 414A is tested to ensure that this alignment lift system will perform flawlessly at its rated capacities. The Atlas® 414A has been manufactured to the same exacting specifications for many years.

The Atlas® 414A uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings".

								Atlas® 414A Specifications
Capacity												14,000 LB.
Lifting Height												76 1/4" (6' 4 1/4")
Overall Width of Columns (Without Motor)												130 1/2" (10' 10 1/2")
Overall Width of Columns (With Motor)												142" (11' 10")
Overall Length with Approach Ramps												256 1/2" (21' 4 1/2")
Overall Length without Approach Ramps												217 3/8" (18' 1 3/8")
4-Wheel Alignment Wheelbase												Maximum 172 1/2" (14' 4 1/2") Minimum 96" (8')
2-Wheel Alignment Wheelbase												Maximum 175 1/2" (14' 7 1/2")
Length Between Columns												196 3/4" (16' 4 3/4")
Runway Length												198 1/4" (16' 6 1/4")
Runway Width												22"
Thickness of Runway												8 3/4"
Width Between Runways												44" (3' 8") *
Width Between Runway Rails												40 3/8" (3' 4 3/8") *
Outside Runway to Outside Runway												83 5/8" (6' 11 5/8")*
Clearance Under Runways												67 1/2" (5' 7 1/2")
Column Dimension												8 1/2" x 5 1/2"
Base of Column												12" x 9 1/2"
Clearance Between columns												116" (9' 8")
Height of Columns												86" (7' 2")
Maximum Wheel Base												186" (15' 6")
Drive Thru												102" (8' 6")
Column Thickness of Steel												3.5mm
Platform Thickness of Steel												6mm
Cross Beam Thickness of Steel												6mm
Cable Diameter												1/2"
Motor												2 HP 220V +/- 5% (209-231volts) 1 phase. A 30 amp breaker is required.
Oil Requirement												3-5 Gallons AW32/AW46
Shipping Weight												3,500LB.
Ramp Length												50" (4' 2")
Length of Slip Plates												67 1/2" (5' 7 1/2")
